Small Pitch LED Display | Narrow Pixel Pitch LED Display

Short Description:

Different with traditional fixed LED cabinet, small pitch LED display can be installed fast with fast locks and direct power cable connection. Besides, it can be installed on wall directly with some screws, no need steel structure. Our small pitch LED display save space and labor cost.

  • Fine Pixel: 1.86/2/2.5mm
  • Maintenance Way: Front service
  • Material: Die-casting Aluminum
  • Warranty: 3 years
  • Certificate: CE, RoHS
  • Product Detail


    Product Tags



    RTLED 640x480mm small pitch LED displays are used in a wide range of industries including control rooms, digital signage, broadcast studios, conference rooms, retail environments, stadiums, command centers, and digital art installations due to their high resolution, high brightness, and versatility.


    weight of small pitch LED display

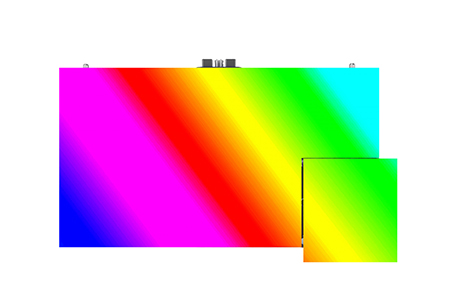

    640x480 Thin and Light Weight

    RTLED’ small pitch LED display is with only 59mm thickness and 7 KG/pc weight, our samll pitch LED panel is portable and easy to install.

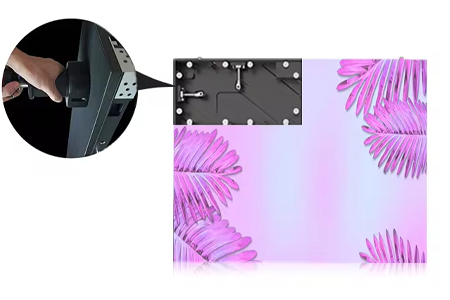

    Front Maintenance of Small Pitch LED display

    Our samll pitch LED display of conference LED screen is completely front maintenance, LED modules are pasted by magnets. Just need a vacuum tool to remove LED modules, then can maintain cables, receiving cards and power supplies.

    small pixel pitch LED display

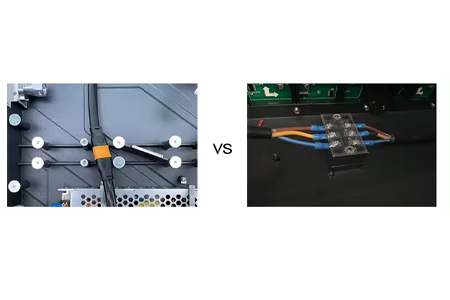

    power cable of small pitch LED display
    date cable of small pitch LED display

    1.the samll pitch LED display of RTLED use direct power cable, it is just like powerCon, and small pitch LED display is very easy to insert and pull out.

    2.RTLED use rainbow date cables, the quality of small pitch LED display is better than white data cables.

    Proprietary Technology

    The technology behind the RTLED indoor LED video wall, designed with Pixel Sharing Engines, has secured patents from various countries.

    technology of fine pitch LED screen

    Our Service

    11 Years Factory

    RTLED has 11 years LED display manufacturer experience, our products quality is stable and we sell LED display to customers directly with factory price.

    Free LOGO Print

    RTLED can free print LOGO on both LED display panel and packages, even if only buy 1 piece samll pitch LED display panel sample.

    3 Years Warranty

    We offer 3 years warranty for all LED displays, we can free repair or replace accessories during warranty period.

    Good After-Sale Service

    RTLED has a professional after sale team, we provide video and drawing instruction for installation and use, besides, we can guide you how to operate LED video wall by online.


    Q1, How to choose the suitable small pitch LED display?

    A1, Please tell us the installation position, size, viewing distance and budget if possible, our sales will provide you best solution.

    Q2, How do you ship the goods and how long does it take to arrive?

    A2, Express such as DHL, UPS, FedEx or TNT usually takes 3-7 working days to arrive. Air shipping and sea shipping are also optional, shipping time is depends on distance.

    Q3, How about the quality of samll pitch LED display?

    A3, RTLED all LED display must be testing of at least 72hours before shipping, from purchase raw materials to ship, each step has strict quality control systems to ensure saml pitch LED display with good quality.



    Item P1.86 P2 P2.5
    Resolution 289050 pixels/sqm 250000 pixels/sqm 160000 pixels/sqm
    Led Lamp SMD1515 SMD1515  SMD1515 / SMD2121
    Drive Method 1/43 Scan 1/32 Scan 1/32 Scan
    Module Size 320 x 160mm
    Panel Size 640 x 480mm
    Panel Weight 6.5 KG/pc
    Specification Video Wall
    Color full color
    Supplier Type Original manufacturer, ODM, Agency, Retailer, Other, OEM
    Function SDK
    Media Available datasheet, Photo, Other
    Refresh rate 3840Hz/s HD
    3 years
    Color Full color
    800-900 nits
    Input Voltage AC110V/220V ±10%
    CE, RoHS
    Maintenance Way Front Access
    Max Power Consumption 800W
    Ave. Power Consumption 300W
    Life Span 100,000 Hours

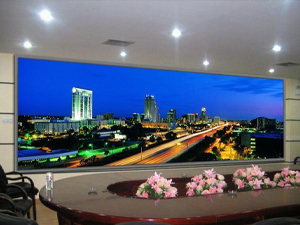

    samll pitch LED display for meeting room
    small pixel pitch LED screen

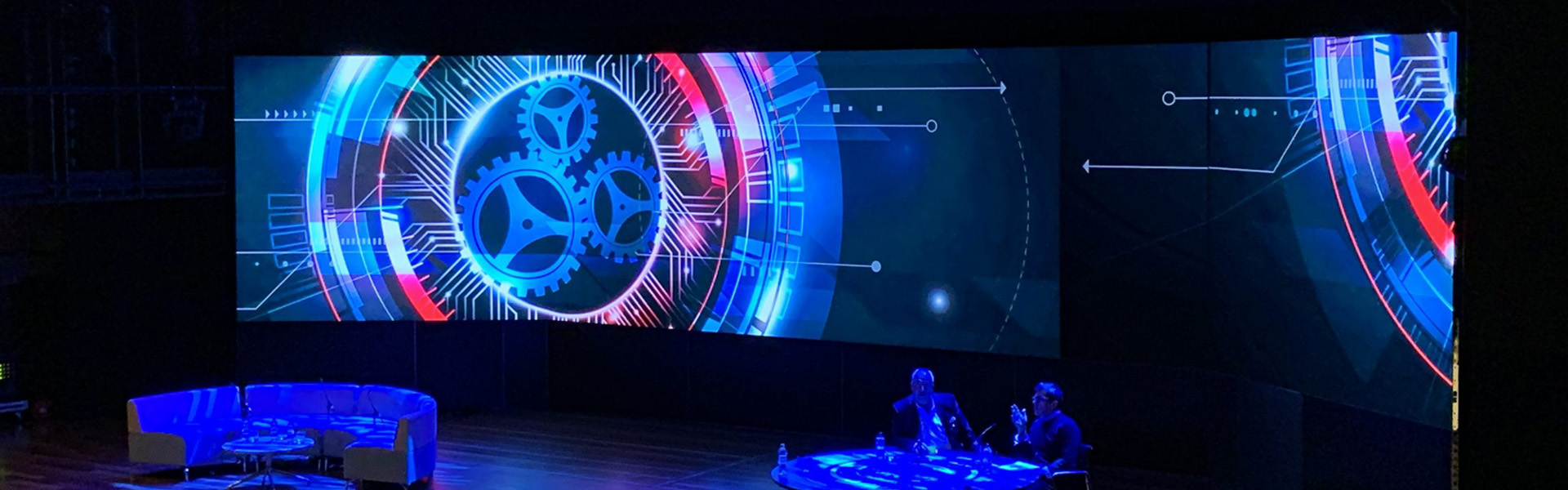

    samll pitch LED display for show

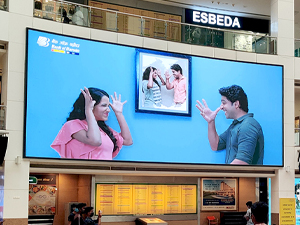

    samll pitch LED display  for shopping mall

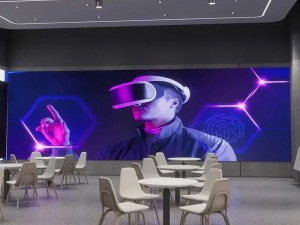

    Metting Room LED Video Wall

    Indoor Small Pitch LED Display

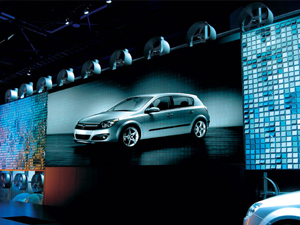

    Indoor Fixed LED Display in Show
    Shopping Mall Fixed LED Display
