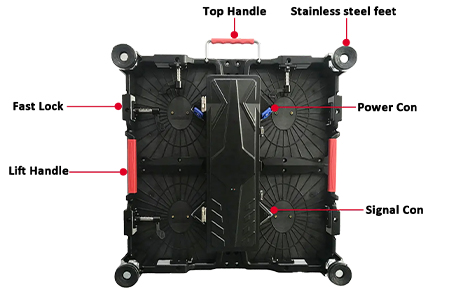

The interactive LED floor tile has high strength mask that supports solid aluminum die-casting equipment. Also, our floor LED display can be connected quickly and has a safe-locking mechanism that helps with each cabinet’s secure and tight connection.
RTLED's floor LED display has a special structure with a reinforced surface. maximum load capacity can be up to 1300kgs weight per squaremeters, you can walk, jump, run dance, and even drive cars on it
Transparent acrylic mask will protect LED lamps not being damaged whenwalking, running and jumping on it. And it has high transparency, video content can be seen clearly. Besides, our floor LED display surface can be wiped cleanby wet cloth.

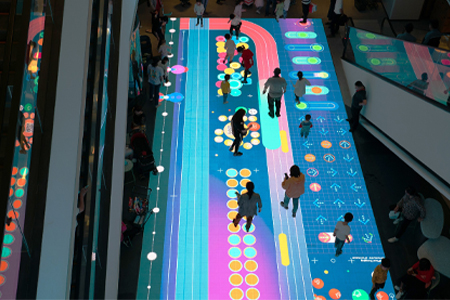

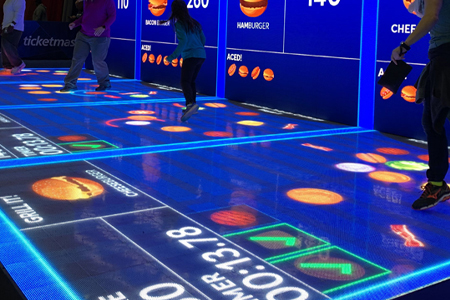

We have non-interactive and interactive two types LED floor display Interactive LED floor content will change when you walking, jumping or running on it, which can attract more participants.

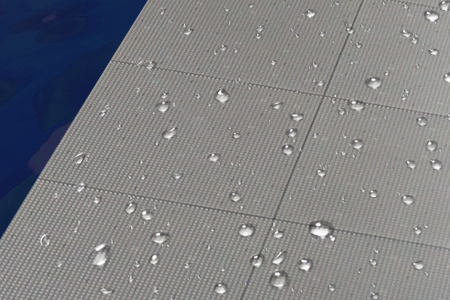

Floor LED display has an acrylic board on the surface for protecting LED lamps from water. Protection grade is IP65, totally meet the demands for outside use, reach multiple applications

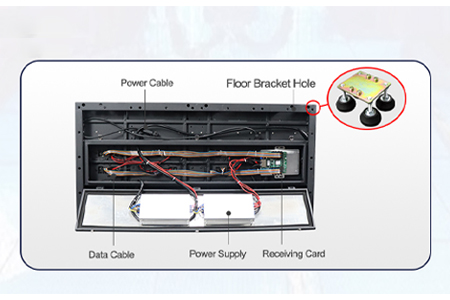

Easily setup and take down this floor LED display with the magnetic tiles made for easy use. Plus, secure the flooring in place with a custom sized kickstand frame.
A1, Please tell us the installation position, size, viewing distance and budget if possible, our sales will provide you best solution.
A2, Express such as DHL, UPS, FedEx or TNT usually takes 3-7 working days to arrive. Air shipping and sea shipping are also optional, shipping time is depends on distance.
A3, RTLED all LED display must be testing of at least 72hours before shipping, from purchase raw materials to ship, each step has strict quality control systems to ensure LED display with good quality.
Item |
P3.91 | P4.81 | P6.25 |
Density | 65,536 dots/㎡ | 43,222 dots/㎡ | 25,600 dots/㎡ |
LED Type | SMD1921 | SMD1921 | SMD2727 |
Panel Size | 500 x 500mm/500 x 1000mm | ||
Drive Method | 1/16 Scan | 1/13 Scan | 1/10 Scan |
Panel Resolution | 128x 128dots/128x256dots | 104 x104 dots/104x208 dots | 80 x80 dots/80x160 dots |
Best Viewing Distance | 4-50m | 5-60m | 6-80m |
Weight Capacity | 1300KG | ||
Material |
Die Casting Aluminum | ||
Warranty |
3 years
|
||
Color | Full color | ||
Brightness |
5000-5500 nits
|
||
Refresh frequency | 1920Hz | ||
Max Power Comsumption | 800W | ||
Average Power Consumption | 300W | ||
Input Voltage | AC110V/220V ±10% | ||
Certificate |
CE, RoHS | ||
Application | Indoor/Outdoor | ||
Waterproof(for outdoor) | Front IP65, Rear IP54 | ||
Life Span | 100,000 Hours |

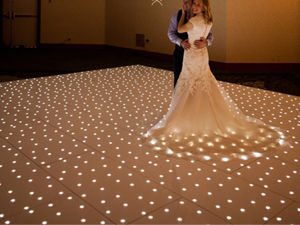

Our interactive floor LED display is widely used for creating a magnificent, modern scene and give people an immersive audio-visual feast. Such as weddings, parties, discos, DJ studios, night club, etc.
