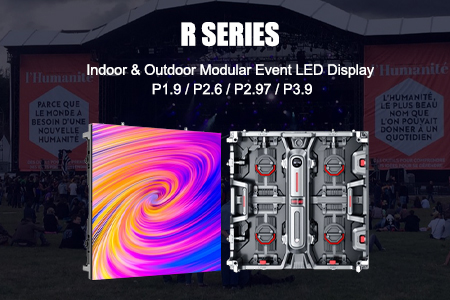

500x1000mm R Series Rental LED Display Screen

Short Description:

The R series is RTLED’s newly designed modules.It incorporates many aesthetic elements, adopts high-strength die-casting aluminum,and has a better performance with a high-definition visual display.Indoor &outdoor rental LED screen is fast and easy installation with R series unique cabinet design.
Pannel size: 500*1000
Pixel pitch:1.95mm/2.604mm/2.976mm/3.91mm

Panel Material:Die-Casting Aluminum
Certificates:CE, RoHS, FCC, LVD
Warranty:3 Years

Product Detail


Product Tags


Indoor rental LED display

If you are looking for a very specific sized screen, our R series modular options are going to be your best choice. Our mobile screens come in fixed sizes which allows for less flexibility in size while offering greatly flexibility in portability.


The R Series LED displays were launched with breakthrough innovations!

Welcome to the leading edge of the future! We are proud to present our new and exclusive displays, bringing you a visual feast like never before.

Corner Protection

R series LED video panel has corner protection equipment.it can protect LED video wall not be damaged during assembly and transportation.

indoor rental LED video panel

Front & Rear Access

Both front access and rear access are supported,It make installation and maintenance easier.

Supnort Curved installation

R series LED video panel can make curved LEDdisplay, both inner and outer arc are supported,and 36pcs LED panels can make a circle.

indoor led screen rental

Seamless Splicing

500x500mm LED panels and 500x1000mm LED panels canbe seamless spliced from top to bottom and from left to right.

Our Service

10 Years Factory

RTLED has 10 years LED display manufacturer experience, our products quality is stable and we sell LED display to customers directly with factory price.

Free LOGO Print

RTLED can free print LOGO on both LED display panel and packages, even if only buy 1 piece LED panel sample.

3 Years Warranty

We offer 3 years warranty for all LED displays, we can free repair or replace accessories during warranty period.

Good After-Sale Service

RTLED has a professional after sale team, we provide video and drawing instruction for installation and use, besides, we can guide you how to operate LED video wall by online.


Q1, How to choose the suitable stage LED video wall?

A1, Please tell us the installation position, size, viewing distance and budget if possible, our sales will provide you best solution.

Q2, How do you ship the goods and how long does it take to arrive?

A2, Express such as DHL, UPS, FedEx or TNT usually takes 3-7 working days to arrive. Air shipping and sea shipping are also optional, shipping time is depends on distance.

Q3, How about the quality?

A3, RTLED all LED display must be testing of at least 72hours before shipping, from purchase raw materials to ship, each step has strict quality control systems to ensure LED display with good quality.



Product Name
R Series
Item P1.95 P2.604 P2.976 P3.91
Pixel Pitch 1.95mm 2.604mm 2.976mm 3.91mm
Density 262,144 dots/m2 147,928 dots/m2 123,904dot/m2 65,536dots/m2
LED Type SMD1515/SMD1921 SMD1515/SMD1921 SMD2121/SMD1921 SMD2121/SMD1921
Panel Resolution 256x256dots / 256x512dots 192x192dots / 192x384dots 168x168dots / 168x336dots 128x128dots / 128x256 dots
Drive Method 1/64 Scan 1/32 Scan 1/28 Scan 1/16 Scan
Best Viewing Distance 1.9-20m 2.5-25m 2.9-30m 4-40m
Brightness 900-5000nits
Panel Size 500 x 1000mm
Max Power Consumption 800W
Average Power Consumption 300W
Refresh Rate 3840Hz
Waterproof (for outdoor) Front IP65, Rear IP54
Input Voltage AC110V/220V ±10%
Application Indoor & outdoor
Life Span 100,000 Hours


indoor rental LED display for studio
Indoor rental LED display for stage
Indoor rental LED display for restaurant
Indoor rental LED display for reception

No matter for commercial such as shopping malls, airports, stations, supermarket, hotels or rental such as performances, competitions, events, exhibitions, celebrations, stage, RA series Led can provide best digital LED display for you. Some clients buy LED display for own use, and most of them do LED poster rental business. The above are some digital LED poster cases from our clients.
